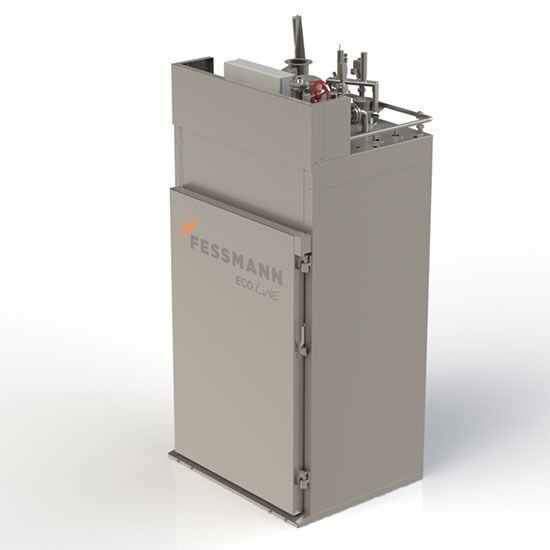

TURBOMAT T1900

TURBOMAT T1900 1) TECHNICAL SPECIFICATIONS UNIT  T1900
DIMENSIONS 1 TROLLEY
Standing surface HP (W × D) cm 126 × 109
Height at the heating type EL/HP, body cm 220
Height at the heating type gas/oil, body cm 220
Minimum room height EL/HP cm 275
Recommended room height EL/HP cm 300
Smoke trolley dimensions (H × W × D) cm 168 × 91 × 80
Max. stick length cm 90
HEATING OUTPUTS
Connection value at HP-heating kW 34
Connection value at EL-heating kW 22,5
Connection value at gas/oil heating kW 25

1) These are overview values not to be used for constructional use.

The complete sizes and energy connections can be taken from the respective applicable dimension sheets.



HP = high-pressure steam heated

EL = electrically heated

Oil = oil-heated

Gas = gas-heated
